2019年10月31日raksmart已经全面开启了2019年的双11促销活动。100%中奖的幸运大抽奖+美国服务器、站群服务器、vps低价抢购，是2019年以来raksmart最大力度的促销活动，有兴趣的可以点击此文章直接查看活动详情：raksmart双11幸运大抽奖：100%中奖，最高可领一年L5630美国免费服务器！美国服务器、美国站群、美国VPS低价限量抢购，不错过抽奖和低价美国服务器产品。
31日活动开启的时候蜗牛比较幸运抽到了一台2*L5630处理器的免费美国服务器，体验时长为1个月。目前蜗牛已经联系客服开通了，选择的是30Mbps精品网CN2网络（电信CN2 GIA、联通169直连、移动骨干直连）、不限流量；此方案另外还支持开通大陆优化线路及国际BGP线路，如果需要切换网络提交工单即可完成。在此文章当中和大家一起来看看raksmart精品CN2 GIA网络服务器速度怎么样？好不好、raksmart双路L5630处理器的美国服务器性能到底怎么样以及raksmart服务器管理面板到底有哪些功能。
一、raksmart官方网站
二、服务器管理面板体验
raksmart美国服务器管理面板比较简单直观。可以在管理面板完成开关机以及重装系统等操作。
三、美国服务器测评
下面主要是针对raksmart中国大陆优化线路的2*L5630、16G内存美国圣何塞服务器进行测评。测试机器带宽是100M独享不限流量。

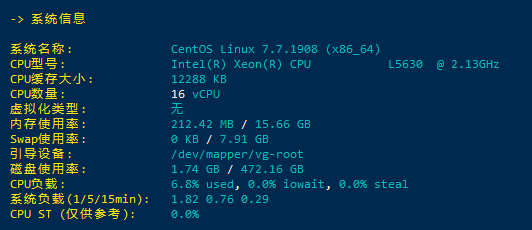

1、服务器基本系统信息测试。2*L5630、16线程没有毛病。
2、看看服务器的网络信息情况。

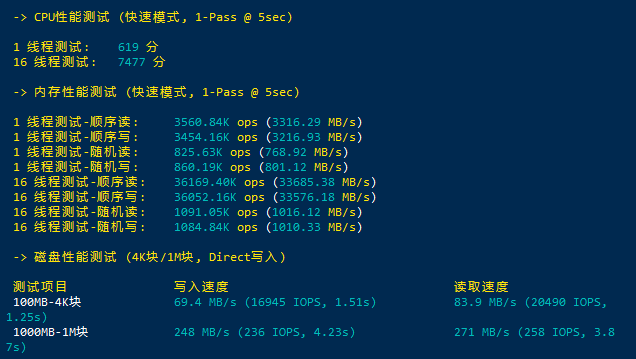

3、再看看服务器cpu、内存、硬盘性能。
4、接下来我们测试下服务器到中国大陆电信、联通、移动节点的上传及下载速度，蜗牛机器首先开通的是100Mbps大陆优化线路后来要求客服更换到了精品网（带CN2的网络），默认的是30Mbps不限流量，就下面测试速度来看国内所有电信、联通测试节点均跑到了30Mbps以上的上行速度。估计是客服调整到精品网后没有及时调整蜗牛机器的带宽峰值，所有均超过了30Mbps上行。相对来说移动线路要差那么一点点。
---------------------------------------------------------------------- CPU Model : Intel(R) Xeon(R) CPU L5630 @ 2.13GHz CPU Cores : 16 Cores @ 2133.489 MHz x86_64 CPU Cache : 12288 KB OS : CentOS 7.7.1908 (64 Bit) Dedicated Kernel : 4.11.8-1.el7.elrepo.x86_64 Total Space : 1.8 GB / 451.2 GB Total RAM : 172 MB / 16035 MB (115 MB Buff) Total SWAP : 0 MB / 8095 MB Uptime : 0 days 5 hour 57 min Load Average : 2.00, 2.00, 2.00 TCP CC : bbr ASN & ISP : AS54600, PEG TECH INC Organization : Wang Hongbin Location : Qingdao, China / CN Region : Shandong ---------------------------------------------------------------------- I/O Speed( 1.0GB ) : 218 MB/s I/O Speed( 1.0GB ) : 212 MB/s I/O Speed( 1.0GB ) : 212 MB/s Average I/O Speed : 214.0 MB/s ---------------------------------------------------------------------- Node Name Upload Speed Download Speed Latency Speedtest.net 95.80 Mbit/s 94.59 Mbit/s 3.677 ms Fast.com 0.00 Mbit/s 93.8 Mbit/s - Wuhan1 CT 48.44 Mbit/s 7.84 Mbit/s - Wuhan CT 45.79 Mbit/s 16.45 Mbit/s - Lianyungang CT 61.22 Mbit/s 68.07 Mbit/s - Hangzhou CT 61.80 Mbit/s 59.41 Mbit/s - Suzhou CT 12.01 Mbit/s 31.08 Mbit/s - Hefei CT 58.82 Mbit/s 72.53 Mbit/s - Wuhan2 CT 17.66 Mbit/s 11.34 Mbit/s - ChongQing CT 5.52 Mbit/s 18.09 Mbit/s - Lanzhou CT 52.41 Mbit/s 57.06 Mbit/s - Kunming CU 33.59 Mbit/s 34.66 Mbit/s - Chengdu CU 53.17 Mbit/s 57.70 Mbit/s - Nanning CU 22.00 Mbit/s 51.92 Mbit/s - Lanzhou CU 54.23 Mbit/s 60.23 Mbit/s - Ningxia CU 55.13 Mbit/s 42.89 Mbit/s - Wuhan CU 53.64 Mbit/s 45.16 Mbit/s - Hefei CU 53.57 Mbit/s 58.06 Mbit/s - Beijing CU 13.29 Mbit/s 45.33 Mbit/s - Nanjing CU 50.00 Mbit/s 52.65 Mbit/s - ShangHai CU 62.53 Mbit/s 45.34 Mbit/s - Shanghai CU 55.09 Mbit/s 57.70 Mbit/s - ShangHai5G CU 57.27 Mbit/s 42.99 Mbit/s - Changchun CU 53.05 Mbit/s 49.17 Mbit/s - Xi an CU 47.49 Mbit/s 40.18 Mbit/s - Hangzhou CM 3.87 Mbit/s 37.12 Mbit/s - Ningbo CM 7.68 Mbit/s 41.80 Mbit/s - Shenyang CM 8.97 Mbit/s 24.38 Mbit/s - Guangzhou CM 12.98 Mbit/s 10.37 Mbit/s - Kashi CM 18.96 Mbit/s 41.95 Mbit/s - Hetian CM 18.72 Mbit/s 39.75 Mbit/s - Lasa CM 19.52 Mbit/s 17.50 Mbit/s - Wulumuqi CM 21.21 Mbit/s 40.72 Mbit/s - Nanning CM 19.59 Mbit/s 22.36 Mbit/s - Lanzhou CM 49.07 Mbit/s 35.27 Mbit/s - Chongqing CCN 23.53 Mbit/s 14.49 Mbit/s - ---------------------------------------------------------------------- Finished in : 14 min 59 sec Timestamp : 2019-11-02 23:29:55 GMT+8 Results : /root/superbench.log ----------------------------------------------------------------------
5、看完国内速度后我们再测试下国外节点的访问速度，主要是测试服务器本身下行带宽对国际线路访问的速度。下行跑满100Mbps，国际方向非常优异。
---------------------------------------------------------------------- CPU model : Intel(R) Xeon(R) CPU L5630 @ 2.13GHz Number of cores : 16 CPU frequency : 2133.489 MHz Total size of Disk : 451.2 GB (1.8 GB Used) Total amount of Mem : 16035 MB (171 MB Used) Total amount of Swap : 8095 MB (0 MB Used) System uptime : 0 days, 6 hour 14 min Load average : 2.06, 2.18, 2.13 OS : CentOS 7.7.1908 Arch : x86_64 (64 Bit) Kernel : 4.11.8-1.el7.elrepo.x86_64 ---------------------------------------------------------------------- I/O speed(1st run) : 217 MB/s I/O speed(2nd run) : 211 MB/s I/O speed(3rd run) : 211 MB/s Average I/O speed : 213.0 MB/s ---------------------------------------------------------------------- Node Name IPv4 address Download Speed CacheFly 205.234.175.175 11.3MB/s Linode, Tokyo2, JP 139.162.65.37 10.6MB/s Linode, Singapore, SG 139.162.23.4 9.92MB/s Linode, London, UK 176.58.107.39 10.3MB/s Linode, Frankfurt, DE 139.162.130.8 10.0MB/s Linode, Fremont, CA 50.116.14.9 11.3MB/s Softlayer, Dallas, TX 173.192.68.18 4.29MB/s Softlayer, Seattle, WA 67.228.112.250 11.1MB/s Softlayer, Frankfurt, DE 159.122.69.4 4.22MB/s Softlayer, Singapore, SG 119.81.28.170 9.46MB/s Softlayer, HongKong, CN 119.81.130.170 9.72MB/s ----------------------------------------------------------------------
6、速度测完了，我们看看国内电信、联通、移动访问的路由追踪情况。
电信去是全程CN2，即CN2 GIA。
0. CN 222.186.161.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1 CN 222.186.161.1 0.0% 20 2.9 4.5 2.7 9.4 1.8 23650 CN CHINANET-JS 222.186.161.1 2 10.10.10.1 20.0% 20 4.2 5.4 2.8 11.4 2.0 - 3 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 4 CN 218.3.7.253 80.0% 20 4453. 4428. 4357. 4453. 47.5 4134 CN CHINANET-BACKBONE 218.3.7.253 5 CN 58.217.20.69 0.0% 20 5.3 9.1 5.1 13.1 2.6 4134 CN CHINANET-BACKBONE 58.217.20.69 6 CN 202.97.27.17 0.0% 20 7.8 7.0 4.9 8.9 1.0 4134 CN CHINANET-BACKBONE 202.97.27.17 7 CN 59.43.80.53 0.0% 20 13.0 9.8 5.9 13.8 2.8 4809 CN CHINATELECOM-CN2 59.43.80.53 8 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 9 CN 59.43.138.66 65.0% 20 11.1 11.4 11.1 11.9 0.0 4809 CN CHINATELECOM-CN2 59.43.138.66 10 CN 59.43.186.246 10.0% 20 32.5 31.6 24.7 61.2 8.7 4809 CN CHINATELECOM-CN2 59.43.186.246 11 CN 59.43.182.145 0.0% 20 168.3 168.5 167.8 170.4 0.4 4809 CN CHINATELECOM-CN2 59.43.182.145 12 CN 218.30.49.74 15.0% 20 159.5 161.0 159.5 168.1 2.0 4134 CN CHINANET-BACKBONE 218.30.49.74 13 10.255.255.101 5.3% 19 148.4 150.9 145.5 178.6 8.4 - 14 US 104.233.242.6 0.0% 19 148.2 146.3 144.5 152.3 2.5 54600 US PEGTECHINC 104.233.242.6
联通去程169直连。
0. CN 112.85.231.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1 10.111.121.1 70.0% 20 0.4 0.4 0.3 0.4 0.0 - 2 CN 112.85.231.129 0.0% 20 3.8 6.5 3.2 26.9 5.3 4837 CN CHINA169-BACKBONE 112.85.231.129 3 10.10.101.1 0.0% 20 0.7 1.4 0.6 12.2 2.5 - 4 CN 112.85.218.149 0.0% 20 52.4 48.6 6.9 54.6 12.6 4837 CN CHINA169-BACKBONE 112.85.218.149 5 CN 122.194.150.241 0.0% 20 1.6 2.0 1.4 6.4 1.0 4837 CN CHINA169-BACKBONE 122.194.150.241 6 CN 112.85.230.137 45.0% 20 16.5 16.8 16.3 18.0 0.0 4837 CN CHINA169-BACKBONE 112.85.230.137 7 CN 219.158.96.169 0.0% 20 34.9 35.3 34.6 43.6 1.9 4837 CN CHINA169-BACKBONE 219.158.96.169 8 CN 219.158.4.174 0.0% 20 40.5 39.8 36.0 43.7 2.1 4837 CN CHINA169-BACKBONE 219.158.4.174 9 CN 219.158.16.66 0.0% 20 38.3 38.0 33.0 46.5 3.0 4837 CN CHINA169-BACKBONE 219.158.16.66 10 CN 219.158.96.38 0.0% 20 189.6 188.0 183.8 191.1 2.2 4837 CN CHINA169-BACKBONE 219.158.96.38 11 CN 219.158.33.78 10.0% 20 181.1 181.4 181.0 183.0 0.4 4837 CN CHINA169-BACKBONE 219.158.33.78 12 CN 198.2.193.242 0.0% 20 204.3 204.6 203.8 214.3 2.2 54600 US PEGTECHINC 198.2.193.242 13 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 14 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 15 US 104.233.242.6 0.0% 20 205.3 204.9 198.9 282.6 18.5 54600 US PEGTECHINC 104.233.242.6
移动去程也是直连。
0. CN 112.30.130.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1. ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 2. ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 3. CN 112.29.129.41 0.0% 20 1.4 2.4 0.7 19.6 4.3 9808 CN CMNET-GD 112.29.129.41 4. CN 112.29.129.9 10.0% 20 40.5 11.6 2.1 82.0 21.8 9808 CN CMNET-GD 112.29.129.9 5. CN 221.183.13.209 0.0% 20 27.3 11.9 1.2 143.5 31.8 9808 CN CMNET-GD 221.183.13.209 6. CN 221.176.18.5 0.0% 20 23.1 33.8 22.7 175.2 34.8 9808 CN CMNET-GD 221.176.18.5 7. CN 221.176.22.106 25.0% 20 76.3 52.9 32.3 78.0 19.1 9808 CN CMNET-GD 221.176.22.106 8. CN 221.176.19.42 20.0% 20 68.4 64.4 35.8 81.2 11.6 9808 CN CMNET-GD 221.176.19.42 9. CN 221.183.55.53 10.0% 20 73.2 74.9 47.5 236.5 42.6 9808 CN CMNET-GD 221.183.55.53 10. CN 223.120.22.13 5.0% 20 119.0 169.8 73.2 400.7 98.7 58453 HK CMI-INT-HK 223.120.22.13 11. CN 223.120.13.169 5.0% 20 230.6 249.9 223.9 381.9 36.3 58453 HK CMI-INT-HK 223.120.13.169 12. CN 223.120.6.70 0.0% 20 265.1 239.4 202.7 371.4 36.4 58453 HK CMI-INT-HK 223.120.6.70 13. HK 223.119.64.182 40.0% 20 244.6 245.3 222.1 363.1 37.8 58453 HK CMI-INT-HK 223.119.64.182 14. ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 15. US 104.233.242.6 50.0% 20 238.8 221.6 200.8 238.8 14.0 54600 US PEGTECHINC 104.233.242.6
7、看完国内网络去程路由情况了，接下来测试下回程路由结果。电信回程也是CN2，移动联通回程直连。
---------------------------------------------------------------------- 北京电信 traceroute to 220.181.22.1 (220.181.22.1), 30 hops max, 60 byte packets 1 107.148.220.254 1.94 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.87 ms * LAN Address 3 10.255.255.211 1.71 ms * LAN Address 4 218.30.49.189 0.86 ms AS4134 United States ctamericas.com 5 59.43.182.182 130.18 ms AS4809 China Shanghai ChinaTelecom 6 * 7 59.43.130.209 133.37 ms AS4809 China Shanghai ChinaTelecom 8 59.43.146.185 162.31 ms AS4809 China Beijing ChinaTelecom 9 * 10 * 11 * 12 220.181.22.1 171.21 ms AS23724 China Beijing ChinaTelecom ---------------------------------------------------------------------- 辽宁联通 traceroute to 220.201.8.6 (220.201.8.6), 30 hops max, 60 byte packets 1 107.148.220.254 0.79 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.71 ms * LAN Address 3 10.255.255.211 2.57 ms * LAN Address 4 * 5 207.254.191.73 8.15 ms AS19174 United States California Los Angeles chinaunicom.com 6 219.158.96.41 167.95 ms AS4837 China Beijing ChinaUnicom 7 219.158.16.77 151.37 ms AS4837 China Beijing ChinaUnicom 8 219.158.4.169 149.72 ms AS4837 China Beijing ChinaUnicom 9 219.158.21.82 161.47 ms AS4837 China Liaoning Shenyang ChinaUnicom 10 218.61.254.222 169.73 ms AS4837 China Liaoning Shenyang ChinaUnicom 11 218.61.254.202 160.66 ms AS4837 China Liaoning Shenyang ChinaUnicom 12 218.61.252.150 161.45 ms AS4837 China Liaoning Shenyang ChinaUnicom 13 * 14 * 15 * 16 220.201.8.6 176.67 ms AS4837 China Liaoning ChinaUnicom ---------------------------------------------------------------------- 北京移动 traceroute to 221.130.33.1 (221.130.33.1), 30 hops max, 60 byte packets 1 107.148.220.254 0.76 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.86 ms * LAN Address 3 10.255.255.211 1.07 ms * LAN Address 4 223.119.64.181 0.95 ms AS58453 United States California San Jose ChinaMobile 5 223.120.6.225 25.75 ms AS58453 United States ChinaMobile 6 223.120.22.29 210.45 ms AS58453 China Guangdong Guangzhou ChinaMobile 7 221.183.55.106 215.48 ms AS9808 China Beijing ChinaMobile 8 * 9 221.176.21.229 197.13 ms AS9808 China Beijing ChinaMobile 10 * 11 221.179.159.238 198.18 ms AS56048 China Beijing ChinaMobile 12 221.130.33.1 206.69 ms AS56048 China Beijing ChinaMobile ---------------------------------------------------------------------- 杭州电信 traceroute to 60.176.0.1 (60.176.0.1), 30 hops max, 60 byte packets 1 107.148.220.254 0.78 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 1.01 ms * LAN Address 3 218.30.49.73 1.13 ms AS4134 United States ctamericas.com 4 59.43.182.142 134.22 ms AS4809 China Shanghai ChinaTelecom 5 59.43.246.217 122.16 ms AS4809 China Shanghai ChinaTelecom 6 59.43.138.49 141.55 ms AS4809 China Shanghai ChinaTelecom 7 59.43.47.94 139.07 ms AS4809 China ChinaTelecom 8 * 9 1.0.176.60.broad.hz.zj.dynamic.163data.com.cn (60.176.0.1) 138.36 ms AS4134 China Zhejiang Hangzhou ChinaTelecom ---------------------------------------------------------------------- 宁波联通 traceroute to 60.12.17.1 (60.12.17.1), 30 hops max, 60 byte packets 1 107.148.220.254 1.59 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.77 ms * LAN Address 3 10.255.255.211 1.10 ms * LAN Address 4 * 5 207.254.191.73 7.99 ms AS19174 United States California Los Angeles chinaunicom.com 6 219.158.98.9 147.60 ms AS4837 China Beijing ChinaUnicom 7 219.158.3.49 145.73 ms AS4837 China Beijing ChinaUnicom 8 219.158.4.169 145.76 ms AS4837 China Beijing ChinaUnicom 9 219.158.107.214 194.21 ms AS4837 China Zhejiang Hangzhou ChinaUnicom 10 * 11 * 12 60.12.17.1 178.95 ms AS4837 China Zhejiang Ningbo ChinaUnicom ---------------------------------------------------------------------- 杭州移动 traceroute to 211.140.0.2 (211.140.0.2), 30 hops max, 60 byte packets 1 107.148.220.254 1.76 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.96 ms * LAN Address 3 10.255.255.211 1.06 ms * LAN Address 4 223.119.64.181 0.89 ms AS58453 United States California San Jose ChinaMobile 5 223.120.6.69 0.82 ms AS58453 United States California San Jose ChinaMobile 6 223.120.12.26 170.73 ms AS58453 China Shanghai ChinaMobile 7 221.183.55.30 171.00 ms AS9808 China Shanghai ChinaMobile 8 221.183.25.189 180.67 ms AS9808 China Shanghai ChinaMobile 9 221.176.17.177 238.93 ms AS9808 China Shanghai ChinaMobile 10 * 11 211.140.0.2 223.65 ms AS56041 China Zhejiang Hangzhou ChinaMobile ---------------------------------------------------------------------- 贵阳电信 traceroute to 58.42.224.1 (58.42.224.1), 30 hops max, 60 byte packets 1 107.148.220.254 1.06 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.88 ms * LAN Address 3 10.255.255.211 1.12 ms * LAN Address 4 218.30.54.117 155.45 ms AS4134 United States ctamericas.com 5 202.97.62.5 146.96 ms AS4134 United States California San Jose ChinaTelecom 6 202.97.60.249 154.01 ms AS4134 China Guangdong Guangzhou ChinaTelecom 7 202.97.94.70 156.59 ms AS4134 China Guangdong Guangzhou ChinaTelecom 8 202.97.91.17 158.28 ms AS4134 China Guangdong Guangzhou ChinaTelecom 9 202.97.69.90 167.18 ms * China Guizhou Guiyang ChinaTelecom 10 61.189.177.94 178.67 ms AS4134 China Guizhou Guiyang ChinaTelecom 11 59.51.187.141 193.26 ms AS4134 China Guizhou Guiyang ChinaTelecom 12 58.42.224.1 183.27 ms AS4134 China Guizhou Guiyang ChinaTelecom ---------------------------------------------------------------------- 贵阳联通 traceroute to 58.16.28.1 (58.16.28.1), 30 hops max, 60 byte packets 1 107.148.220.254 0.78 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.91 ms * LAN Address 3 10.255.255.211 1.14 ms * LAN Address 4 * 5 207.254.191.58 166.21 ms AS19174 United States California Los Angeles chinaunicom.com 6 207.254.191.77 152.07 ms AS19174 United States California Los Angeles chinaunicom.com 7 219.158.97.177 166.41 ms AS4837 China Shanghai ChinaUnicom 8 219.158.113.118 170.31 ms AS4837 China Shanghai ChinaUnicom 9 219.158.113.113 163.67 ms AS4837 China Shanghai ChinaUnicom 10 219.158.17.134 188.60 ms AS4837 China Guizhou Guiyang ChinaUnicom 11 * 12 * 13 58.16.28.1 213.78 ms AS4837 China Guizhou Guiyang ChinaUnicom ---------------------------------------------------------------------- 贵阳移动 traceroute to 211.139.0.10 (211.139.0.10), 30 hops max, 60 byte packets 1 107.148.220.254 2.34 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.91 ms * LAN Address 3 10.255.255.211 1.25 ms * LAN Address 4 223.119.64.181 1.01 ms AS58453 United States California San Jose ChinaMobile 5 223.120.6.225 25.98 ms AS58453 United States ChinaMobile 6 223.120.13.194 159.59 ms AS58453 China Guangdong Guangzhou ChinaMobile 7 221.183.55.78 164.17 ms AS9808 China Guangdong Guangzhou ChinaMobile 8 221.176.19.37 161.68 ms AS9808 China Guangdong Guangzhou ChinaMobile 9 221.176.18.109 172.79 ms AS9808 China Guangdong Guangzhou ChinaMobile 10 * 11 221.183.13.90 219.03 ms AS9808 China Guizhou Guiyang ChinaMobile 12 ns.gz.chinamobile.com (211.139.13.142) 191.22 ms AS9808 China Guizhou Guiyang ChinaMobile 13 * 14 ns1.gz.chinamobile.com (211.139.0.10) 202.87 ms AS9808 China Guizhou Guiyang ChinaMobile ---------------------------------------------------------------------- 广州电信 traceroute to 14.215.116.1 (14.215.116.1), 30 hops max, 60 byte packets 1 107.148.220.254 2.04 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 1.04 ms * LAN Address 3 10.255.255.211 1.09 ms * LAN Address 4 218.30.49.189 1.02 ms AS4134 United States ctamericas.com 5 59.43.189.213 157.67 ms AS4809 China Guangdong Guangzhou ChinaTelecom 6 * 7 59.43.130.121 159.71 ms AS4809 China Guangdong Guangzhou ChinaTelecom 8 59.43.80.118 164.50 ms AS4809 China Guangdong Guangzhou ChinaTelecom 9 183.59.12.245 159.81 ms AS58543 China Guangdong Guangzhou ChinaTelecom 10 183.56.128.2 160.33 ms AS58543 China Guangdong Guangzhou ChinaTelecom 11 14.215.116.1 161.43 ms AS58543 China Guangdong Guangzhou ChinaTelecom ---------------------------------------------------------------------- 深圳联通 traceroute to 58.250.0.1 (58.250.0.1), 30 hops max, 60 byte packets 1 107.148.220.254 0.84 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.83 ms * LAN Address 3 10.255.255.211 1.05 ms * LAN Address 4 * 5 207.254.191.13 4.20 ms AS19174 United States chinaunicom.com 6 219.158.117.1 187.54 ms AS4837 China Beijing ChinaUnicom 7 219.158.16.77 163.52 ms AS4837 China Beijing ChinaUnicom 8 219.158.18.65 169.44 ms AS4837 China Beijing ChinaUnicom 9 219.158.112.26 201.00 ms AS4837 China Guangdong Guangzhou ChinaUnicom 10 112.92.0.82 205.30 ms AS17816 China Guangdong Shenzhen ChinaUnicom 11 58.250.0.1 205.06 ms AS17623 China Guangdong Shenzhen ChinaUnicom ---------------------------------------------------------------------- 广州移动 traceroute to 211.139.145.34 (211.139.145.34), 30 hops max, 60 byte packets 1 107.148.220.254 0.79 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.84 ms * LAN Address 3 10.255.255.211 1.01 ms * LAN Address 4 223.119.64.181 1.22 ms AS58453 United States California San Jose ChinaMobile 5 223.120.6.225 25.60 ms AS58453 United States ChinaMobile 6 223.120.13.190 159.66 ms AS58453 China Guangdong Guangzhou ChinaMobile 7 221.183.55.90 161.35 ms AS9808 China Guangdong Guangzhou ChinaMobile 8 221.176.24.57 160.06 ms AS9808 China Guangdong Guangzhou ChinaMobile 9 221.176.24.157 161.59 ms AS9808 China Guangdong Guangzhou ChinaMobile 10 221.183.14.126 162.43 ms AS9808 China Guangdong Guangzhou ChinaMobile 11 211.136.203.26 198.12 ms AS56040 China Guangdong Guangzhou ChinaMobile 12 * 13 221.179.44.57 164.04 ms AS56040 China Guangdong Guangzhou ChinaMobile 14 * 15 211.139.145.34 164.71 ms AS56040 China Guangdong Guangzhou ChinaMobile ---------------------------------------------------------------------- 上海电信 traceroute to 101.95.120.109 (101.95.120.109), 30 hops max, 60 byte packets 1 107.148.220.254 0.98 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.87 ms * LAN Address 3 218.30.49.73 0.98 ms AS4134 United States ctamericas.com 4 59.43.182.146 134.32 ms AS4809 China Shanghai ChinaTelecom 5 59.43.246.217 147.87 ms AS4809 China Shanghai ChinaTelecom 6 59.43.130.217 139.03 ms AS4809 China Shanghai ChinaTelecom 7 61.152.24.186 135.61 ms AS4812 China Shanghai ChinaTelecom 8 101.95.120.109 154.94 ms AS4812 China Shanghai ChinaTelecom ---------------------------------------------------------------------- 上海联通 traceroute to 211.95.72.254 (211.95.72.254), 30 hops max, 60 byte packets 1 107.148.220.254 1.77 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.79 ms * LAN Address 3 10.255.255.211 2.42 ms * LAN Address 4 * 5 207.254.191.73 4.65 ms AS19174 United States California Los Angeles chinaunicom.com 6 219.158.96.37 146.72 ms AS4837 China Beijing ChinaUnicom 7 219.158.3.137 169.76 ms AS4837 China Beijing ChinaUnicom 8 219.158.5.153 168.03 ms AS4837 China Beijing ChinaUnicom 9 219.158.6.198 177.96 ms AS4837 China Shanghai ChinaUnicom 10 * 11 139.226.208.238 170.86 ms AS17621 China Shanghai ChinaUnicom 12 * 13 140.207.207.190 177.24 ms AS17621 China Shanghai ChinaUnicom 14 211.95.72.254 190.68 ms AS17621 China Shanghai ChinaUnicom ---------------------------------------------------------------------- 上海移动 traceroute to 183.192.160.3 (183.192.160.3), 30 hops max, 60 byte packets 1 107.148.220.254 0.79 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.91 ms * LAN Address 3 10.255.255.211 1.13 ms * LAN Address 4 223.119.64.181 0.90 ms AS58453 United States California San Jose ChinaMobile 5 223.120.6.69 1.20 ms AS58453 United States California San Jose ChinaMobile 6 223.120.12.26 170.58 ms AS58453 China Shanghai ChinaMobile 7 221.183.55.34 171.83 ms AS9808 China Shanghai ChinaMobile 8 221.183.25.193 182.24 ms AS9808 China Shanghai ChinaMobile 9 221.176.22.13 191.22 ms AS9808 China Shanghai ChinaMobile 10 221.183.12.162 190.16 ms AS9808 China Shanghai ChinaMobile 11 117.185.10.130 190.72 ms AS9808 China Shanghai ChinaMobile 12 120.204.194.6 193.17 ms AS9808 China Shanghai ChinaMobile 13 120.204.194.14 197.08 ms AS9808 China Shanghai ChinaMobile 14 * 15 183.192.160.3 192.63 ms AS9808 China Shanghai ChinaMobile ---------------------------------------------------------------------- 成都教育网 traceroute to 202.112.14.151 (202.112.14.151), 30 hops max, 60 byte packets 1 107.148.220.254 0.87 ms AS54600 United States California San Jose petaexpress.com 2 10.255.255.100 0.76 ms * LAN Address 3 10.255.255.211 1.14 ms * LAN Address 4 218.30.49.189 0.79 ms AS4134 United States ctamericas.com 5 59.43.182.186 122.07 ms AS4809 China Shanghai ChinaTelecom 6 59.43.247.61 139.41 ms AS4809 China Shanghai ChinaTelecom 7 59.43.138.65 138.73 ms AS4809 China Shanghai ChinaTelecom 8 59.43.80.106 140.49 ms AS4809 China Shanghai ChinaTelecom 9 202.97.46.70 128.90 ms AS4134 China Shanghai ChinaTelecom 10 * 11 101.4.114.245 140.69 ms AS4538 China Shanghai CHINAEDU 12 101.4.112.41 143.80 ms AS4538 China Jiangsu Nanjing CHINAEDU 13 101.4.117.25 149.39 ms AS4538 China Anhui Hefei CHINAEDU 14 101.4.112.61 192.16 ms AS4538 China Hubei Wuhan CHINAEDU 15 101.4.112.29 182.13 ms AS4538 China Chongqing CHINAEDU 16 101.4.117.53 178.85 ms AS4538 China Chongqing CHINAEDU 17 101.4.116.90 184.95 ms AS4538 China Sichuan Chengdu CHINAEDU 18 202.115.255.250 182.67 ms AS4538 China Sichuan Chengdu CHINAEDU 19 202.115.254.246 174.62 ms AS4538 China Sichuan Chengdu CHINAEDU 20 * 21 dns.uestc.edu.cn (202.112.14.151) 191.76 ms AS24355 China Sichuan Chengdu CHINAEDU ----------------------------------------------------------------------
8、看看国内节点的ping测试情况，114个节点有效，平均ping在175.6毫秒。
| 线路 | 节点数目 | 最快节点 | 最慢节点 | 平均响应 |
|---|---|---|---|---|
| 全部 | 114 | 安徽芜湖(电信) 132.8 毫秒 | 江苏宿迁(UOVZ) 421.0 毫秒 | 175.6 毫秒 |
| 联通线路 | 11 | 安徽滁州(联通) 151.5 毫秒 | 江苏徐州(联通) 212.4 毫秒 | 188.4 毫秒 |
| 电信线路 | 57 | 安徽芜湖(电信) 132.8 毫秒 | 新疆乌鲁木齐(天翼云) 235.2 毫秒 | 169.5 毫秒 |
| 移动线路 | 11 | 江苏宿迁(7yc.com) 159.5 毫秒 | 江苏宿迁(UOVZ) 421.0 毫秒 | 218.5 毫秒 |
| 东北地区 | 7 | 辽宁大连(电信) 177.2 毫秒 | 吉林长春(铁通) 235.4 毫秒 | 196.0 毫秒 |
| 华北地区 | 15 | 北京(青云三区A) 146.9 毫秒 | 北京(bgp) 199.1 毫秒 | 174.4 毫秒 |
| 西北地区 | 6 | 甘肃兰州(天翼云) 164.1 毫秒 | 新疆乌鲁木齐(天翼云) 235.2 毫秒 | 186.7 毫秒 |
| 西南地区 | 12 | 贵州贵阳(天翼云) 168.8 毫秒 | 重庆(联通) 212.1 毫秒 | 185.9 毫秒 |
| 华中地区 | 8 | 河南洛阳(bgp) 159.8 毫秒 | 河南郑州(bgp) 189.4 毫秒 | 170.7 毫秒 |
| 华东地区 | 45 | 安徽芜湖(电信) 132.8 毫秒 | 江苏宿迁(UOVZ) 421.0 毫秒 | 170.2 毫秒 |
| 华南地区 | 21 | 广东广州(bgp) 161.0 毫秒 | 广东茂名(联通) 209.1 毫秒 | 174.0 毫秒 |

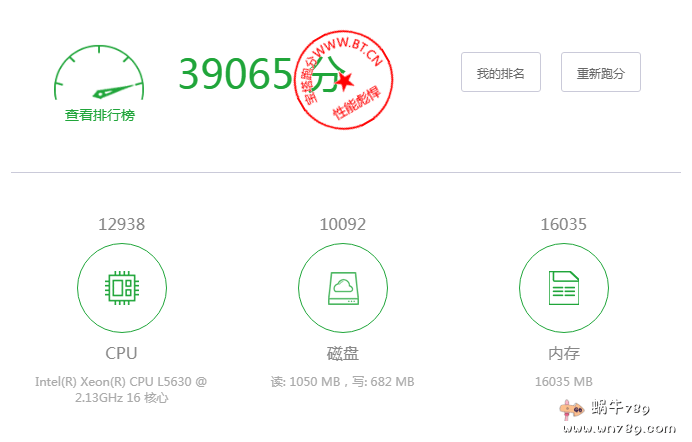

9、看看宝塔Linux面板跑分结果、
